Classic Fabric Bellows
Odine classic fabric bellows are tested millions of times under tough conditions (dust, cooling liquids , light and small chips etc.) and proved its excellence in the environments where protection is needed. Fabric bellows have a flexable structure and they are produced by forming various technical fabrics and stiffening with PVC materials. Movement and area borders of classic fabric bellows depends on the dimensions of the rails and slideways which they are guided on. These kind of bellows are an excellent solution even for the narrowest places.
Production Forms
These kind of bellows are produced in three ways as welding, sewing and laminated.
In welding method PVC stiffeners and technical fabrics are combined by high frequency. Chemical adhesives are not used so cooling liquids and chemicals can not damage the structure of the product. By this preventation high protection can be provided in environments where liquids are found.
In sewing method PVC stiffeners and technical fabrics are combined by sewing. It is a durable solution for the environments where high temperatures and tough conditions are found.
Flange Mounting Positions
Steel, aluminum and PVC is used as flange material.
Hole sizes are arrenged according to customer’s request.
Steel, aluminum and PVC is used as flange material.
Hole sizes are arrenged according to customer’s request.
Velcro strips are used for connection, easy to assemble and disassemble.
Recommended for dry environment

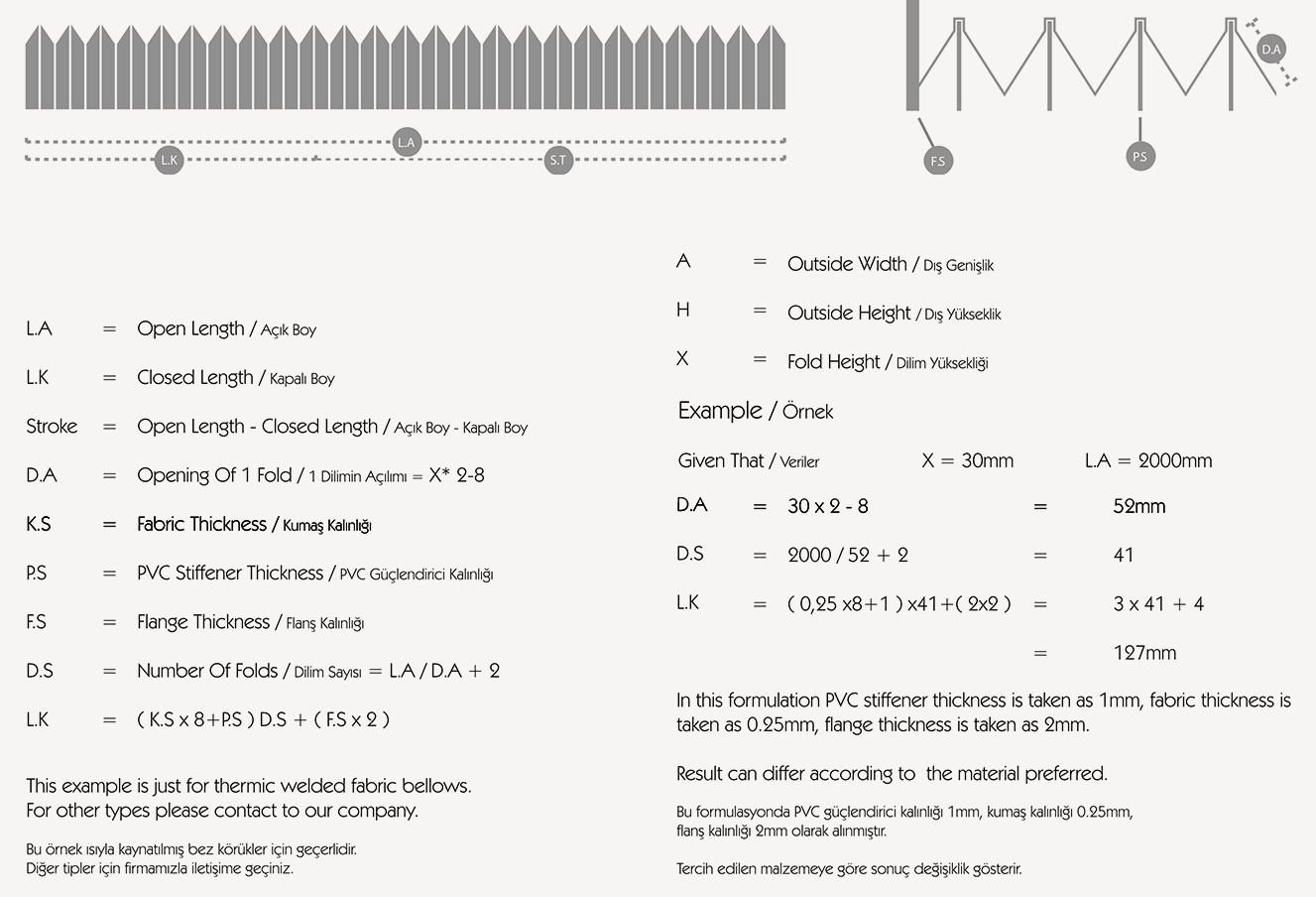

Formula For Calculating the Closed Length
Production Forms Examples
It is a durable solution for the environments where high temperatures and tough conditions are found.
In lamination method fabric and PVC material are covered by using chemical adhesives. Special applications like low fold widths, folding turnabout and polygonial bellows can easily be produced by this way. It provides excellent enduranse becuse of being combined with a special bonding method.
